The head gasket is a critical component that forms a seal between the engine block and the cylinder head, helping to prevent the mixing of coolant, oil, and combustion gases. However, when an engine overheats, it puts the head gasket under intense strain. This blog delves into why engine overheating often leads to a blown head gasket, the signs of gasket failure, and how to prevent it.
1. Understanding the Head Gasket and Its Role
A head gasket’s job is complex. It must withstand combustion pressures, prevent the mixture of engine oil and coolant, and ensure that each cylinder remains sealed. Typically made of durable materials like steel, rubber, or composite layers, the gasket is designed to handle extreme heat and pressure. However, these conditions have limits, and when an engine overheats, it pushes the gasket beyond its tolerance.
2. How Engine Overheating Affects the Head Gasket
Engine overheating occurs when the temperature inside the engine rises above normal operating levels. Causes of overheating include coolant leaks, a malfunctioning thermostat, a failing water pump, or even low oil levels. When the engine gets too hot, the heat can warp metal components like the cylinder head or engine block, compromising the seal created by the head gasket.
Thermal Expansion and Material Strain
When metal heats up, it expands, and when it cools, it contracts. This natural expansion and contraction are manageable under normal conditions but can be detrimental during overheating. The cylinder head and engine block can warp due to excessive heat, creating gaps that compromise the gasket's sealing ability. The head gasket, caught between these two major components, struggles to maintain a seal and is ultimately forced to fail.

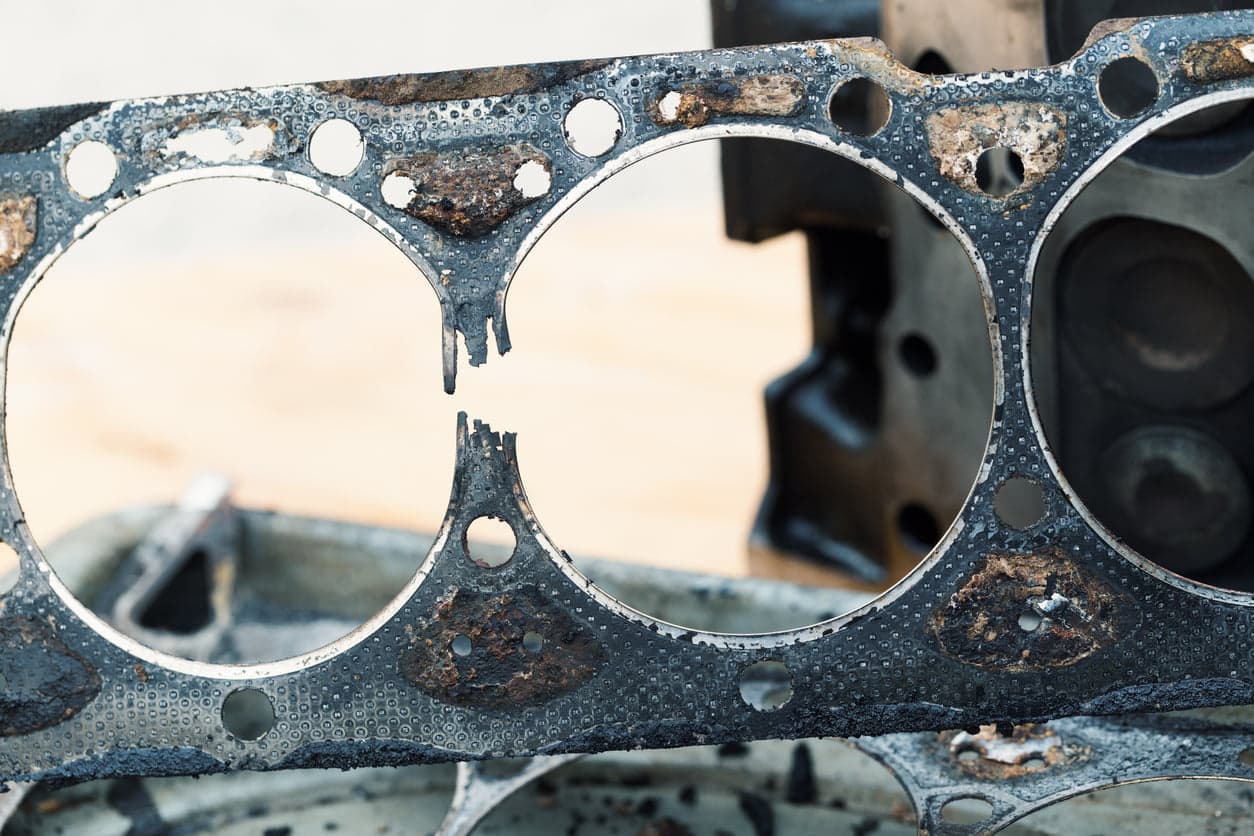

3. Consequences of a Blown Head Gasket
A blown head gasket is more than a minor inconvenience—it can lead to severe engine damage and high repair costs. Here are some of the main consequences:
Coolant Leaks: When the gasket fails, coolant can leak into the engine block, leading to further overheating and potential engine damage.
Oil Contamination: A blown gasket can cause coolant to mix with engine oil, reducing the oil’s lubricating properties and leading to premature engine wear.
Loss of Compression: The gasket maintains compression in each cylinder; when it fails, compression drops, leading to a loss of engine power and efficiency.
White Smoke from the Exhaust: One telltale sign of a blown head gasket is white smoke, a result of coolant burning in the combustion chamber.
4. Common Causes of Engine Overheating
Preventing a blown head gasket largely revolves around understanding and managing the causes of overheating. Here are some of the most common culprits:
Coolant Leaks: A small coolant leak can lead to gradual overheating. It’s essential to regularly check coolant levels and inspect for leaks.
Faulty Thermostat: The thermostat regulates coolant flow, and if it malfunctions, it can restrict coolant circulation, causing the engine to overheat.
Malfunctioning Water Pump: The water pump circulates coolant throughout the engine. A failing water pump can lead to uneven cooling, causing hotspots that contribute to overheating.
Blocked Radiator: A clogged radiator hinders coolant from flowing efficiently, leading to higher temperatures.
Low Oil Levels: Engine oil acts as a coolant in addition to providing lubrication. Low oil levels can increase engine temperature and wear on components.
5. Signs Your Head Gasket Might Be Blown
Recognizing the early signs of a blown head gasket can save you from extensive repairs. Here’s what to look for:
Overheating: Persistent engine overheating is a warning sign. If your car’s temperature gauge climbs into the red, it’s essential to address it immediately.
Coolant and Oil Mixing: Milky oil or frothy coolant in the radiator indicates cross-contamination, a sign of head gasket failure.
Loss of Engine Power: A drop in engine performance, especially if combined with unusual noises, could indicate a compression loss due to gasket failure.
Bubbles in Radiator: Visible bubbles in the radiator or coolant reservoir may indicate combustion gases leaking through the gasket into the cooling system.
6. Diagnosing a Blown Head Gasket
Proper diagnosis is essential before moving forward with repairs. Here are some diagnostic methods professionals use:
Compression Test: By measuring the pressure in each cylinder, technicians can detect a drop in compression caused by a blown gasket.
Coolant Pressure Test: This test can reveal leaks in the cooling system caused by gasket failure.
Chemical Test: A chemical test can detect exhaust gases in the coolant, which is a telltale sign of head gasket issues.
Examination of Engine Oil: Milky, white oil suggests coolant contamination, an indicator of a blown head gasket.
7. Repairing or Replacing a Blown Head Gasket
Repairing a blown head gasket can be complex and costly, often involving several steps:
Removing the Cylinder Head: The first step is to remove the cylinder head to access the damaged gasket.
Replacing or Resurfacing the Head: In many cases, the cylinder head needs resurfacing to restore a flat surface and ensure a proper seal with the new gasket.
Replacing the Gasket: A new head gasket is then installed, and the cylinder head is reattached.
Testing for Additional Damage: Once the repair is complete, technicians may perform tests to ensure the engine is functioning correctly and that no other components were damaged.
Replacing a head gasket can be expensive, with costs varying depending on the engine type and the extent of the damage. In some cases, engine replacement may be more cost-effective, especially if other components are compromised.
8. Preventing Engine Overheating and Head Gasket Failure
Prevention is the best way to avoid the high costs of head gasket repairs. Here are some maintenance tips:
Monitor Coolant Levels: Regularly check coolant levels and look for leaks to prevent gradual overheating.
Inspect the Radiator and Hoses: Radiator hoses are susceptible to wear and can leak or collapse, leading to inadequate coolant flow.
Flush the Cooling System: Regularly flushing the coolant removes buildup that can clog the system, helping to maintain efficient cooling.
Maintain Oil Levels and Quality: Engine oil is essential for cooling and lubrication, so keeping it at optimal levels can prevent excessive heat.
Address Overheating Immediately: If you notice overheating, pull over and turn off the engine to prevent further damage. Ignoring high temperatures can lead to head gasket failure.
9. Conclusion
A blown head gasket is a serious issue often resulting from engine overheating. When metal parts expand and warp under extreme heat, the head gasket loses its ability to maintain a seal, leading to costly and potentially catastrophic engine damage. Preventive maintenance, regular coolant checks, and addressing overheating promptly can go a long way toward preserving your engine and avoiding a blown head gasket. Recognizing the signs early and acting quickly is essential to maintaining a reliable vehicle and avoiding the high costs associated with gasket failure.
Taking care of your cooling system and oil levels can be the difference between a minor repair and a major overhaul. Remember, preventive care for your car’s engine is the key to long-term vehicle health.
